Create Company Form

On the client node, go to 'Forms'. Right click on the node to create the Company The Scout documentation has been moved to https://eclipsescout.github.io/. [1]. As the name of the form, enter Company and choose to create the Form ID which is the primary key of the company [2]. Click next to choose from the artifacts which also should be created by Scout SDK [3]. Uncheck all permissions as The Scout documentation has been moved to https://eclipsescout.github.io/. is not part of this tutorial.

Create Form Fields

On the CompanyForm node, go to the 'MainBox'. Right click on the MainBox to create the following 9 Form The Scout documentation has been moved to https://eclipsescout.github.io/.'s [4]:

NameField
Type: String Field [5]
Name: Name [6]
Class name: NameField

SymbolField
Type: String Field
Name: Symbol
Class name: SymbolField

TradeTimeField
Type: Date Field
Name: Trade time
Class name: TradeTimeField

ValueLastField
Type: Double Field
Name: Value last
Class name: ValueLastField

ValueOpenField
Type: Double Field
Name: Value open
Class name: ValueOpenField

ValueLowField
Type: Double Field
Name: Value low
Class name: ValueLowField

ValueHighField
Type: Double Field
Name: Value high
Class name: ValueHighField

VolumeField
Type: Long Field
Name: Volume
Class name: VolumeField

ChangeField
Type: Double Field
Name: Change
Class name: ChangeField

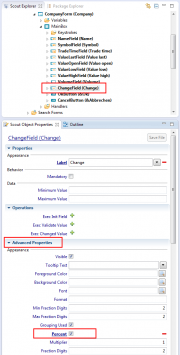

Because ChangeField represents a procentual value, click on that field and check the property Percent in Scout Property View [7].

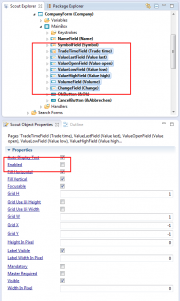

Furthermore, all stock quote specific fields have to be disabled as those fields cannot be modified because data is provided by a webservice. To to so, select all those fields in Scout SDK and uncheck Enabled in Scout Property View [8].

As the stock quote symbol can be maximal 5 characters long, this must be constrained on the SymbolField by selecting the field and set the Max Length property in Scout Property View to 5 [9].

Associate CompanyForm with CompanyTablePage

To edit and create companies, you have to add an 'EDIT' and 'NEW' menu to the CompanyTablePage. On client node, go to the node 'Desktop' | 'Outlines' | 'StandardOutline' | 'Child Pages' | 'CompanyTablePage' | 'Table' | 'Menus'. Click on the menu node to create the following 2 menus [10]:

NEW menu [11]
Name: New company...
Class Name: NewCompanyMenu
Super Type: AbstractMenu
Form to start: CompanyForm
Form handler: NewHandler

EDIT menu [12]
Name: Edit company...
Class Name: EditCompanyMenu
Super Type: AbstractMenu
Form to start: CompanyForm
Form handler: ModifyHandler

In the EDIT menu action, we also have to provide the CompanyNr primary key as argument to the CompanyForm. For that reason, double click the EditCompanyMenu to modify the code in execAction() as follows:

@Override
protected void execAction() throws ProcessingException {
  CompanyForm form = new CompanyForm();

  // Add the following line to set the primary key of the selected company to the form
  form.setCompanyNr(getCompanyNrColumn().getSelectedValue());

  form.startModify();
  form.waitFor();
  if (form.isFormStored()) {
    reloadPage();
  }
}

Load and persist company data

Scout SDK already created a CompanyProcessService in order to load and persist company data. You only have to implement those operations:

For that reason, go to the server node and open the CompanyProcessService by double click on 'Process Services' | 'CompanyProcessService'. You will find the following method stubs:

 prepareCreate
 Is called by CompanyForm#NewHandler prior to open a non-existing company. This is if a company is to be created to show some default values in the form. It is not used by this tutorial.

 create
 Is called by CompanyForm#NewHandler to create a company record in database

 load
 Is called by CompanyForm#ModifyHandler to load a company record from database

 store
 Is called CompanyForm#ModifyHandler to update a company record in database

Please implement those method stubs as following:

public class CompanyProcessService extends AbstractService implements ICompanyProcessService {

  @Override
  public CompanyFormData prepareCreate(CompanyFormData formData) throws ProcessingException {
    // nop
    return formData;
  }

  @Override
  public CompanyFormData create(CompanyFormData formData) throws ProcessingException {
    formData.setCompanyNr(SQL.getSequenceNextval("GLOBAL_SEQ"));
    SQL.insert("" +
        "INSERT INTO COMPANY " +
        "           (COMPANY_NR, " +
        "            NAME, " +
        "            SYMBOL) " +
        "VALUES     (:companyNr, " +
        "            :name, " +
        "            :symbol)"
        , formData);

    return formData;
  }

  @Override
  public CompanyFormData load(CompanyFormData formData) throws ProcessingException {
    SQL.selectInto("" +
        "SELECT NAME, " +
        "       SYMBOL " +
        "FROM   COMPANY " +
        "WHERE  COMPANY_NR = :companyNr " +
        "INTO   :name, " +
        "       :symbol "
        , formData);
    return formData;
  }

  @Override
  public CompanyFormData store(CompanyFormData formData) throws ProcessingException {
    SQL.update("" +
        "UPDATE   COMPANY " +
        "SET      NAME = :name, " +
        "         SYMBOL = :symbol " +
        "WHERE    COMPANY_NR = :companyNr"
        , formData);

    return formData;
  }
}

Create Company Form

Create Company Form

Create Form artefacts

Create Form Field

Set datatype for Form Field

Set properties of Form Field

Create menu on CompanyTablePage

Create the NEW menu

Create the EDIT menu

Set percent mode for the ChangeField

Disable webservice specific fields

Load and persist data in CompanyProcessService

Set maxLength to symbol field
